XML-Technologien / XSL-FO / Referenz / Antenna House Formatter XSL Extensions / Properties / suppress-duplicate-footnote

axf:suppress-duplicate-footnote

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Footnote >> Footnote Positioning

Specifies whether to delete footnotes duplicated in the same page.

Value:	true \| false
Initial:	false
Applies to:	fo:footnote
Inherited:	yes
Percentages:	N/A

Deters the display of duplicated footnotes on the same footnote region when the same footnote is assigned to 2 or more places in the same page. When axf:footnote-position="column" is specified, it is effective only for the footnote in the same column.

XSL-FO sample:

		<fo:root xml:lang="en" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">
		<axf:document-info name="document-title" value="Suppressing duplicate footnotes within the same page"/>
		<axf:document-info name="author" value="Antenna House, Inc."/>
		<fo:layout-master-set>
		<fo:simple-page-master page-height="297mm" page-width="210mm" margin-top="10mm" margin-left="20mm" margin-right="20mm" margin-bottom="10mm" master-name="PageMaster1">
		<fo:region-after extent="7mm"/>
		<fo:region-body margin-top="0mm" margin-left="0mm" margin-right="0mm" margin-bottom="10mm"/>
		</fo:simple-page-master>
		<fo:simple-page-master page-height="297mm" page-width="210mm" margin-top="10mm" margin-left="20mm" margin-right="20mm" margin-bottom="10mm" master-name="PageMaster2">
		<fo:region-after extent="7mm"/>
		<fo:region-body margin-top="0mm" margin-left="0mm" margin-right="0mm" margin-bottom="10mm"/>
		</fo:simple-page-master>
		</fo:layout-master-set>
		<fo:page-sequence master-reference="PageMaster1">
		<fo:static-content flow-name="xsl-region-after">
		<fo:block font-size="0.8em" text-align="right" color="green">
		<fo:basic-link external-destination="http://www.antennahouse.com/">
		Antenna House, Inc.
		</fo:basic-link>
		</fo:block>
		</fo:static-content>
		<fo:static-content flow-name="xsl-footnote-separator">
		<fo:block>
		<fo:leader leader-length="30%" leader-pattern="dots"/>
		</fo:block>
		</fo:static-content>
		<fo:flow flow-name="xsl-region-body" font-family="serif" font-size="1em" line-height="1.4" axf:hyphenate-hyphenated-word="false" hyphenate="true">
		<fo:block span="all" font-family="sans-serif" font-size="2em" font-weight="bold" line-height="2" space-before="1em" space-after="1em" space-before.conditionality="retain" space-after.conditionality="retain" background-color="#EEEEEE">
		<fo:block start-indent="1em" end-indent="1em">
		Suppressing duplicate footnotes within the same page
		</fo:block>
		</fo:block>
		<fo:block span="all" space-before="1em" space-after="1em" space-after.conditionality="retain" text-indent="0em" border="1pt solid #9999FF" start-indent="0.5em" end-indent="0.5em" padding="0.5em" text-align="justify">
		When the same footnote is allotted at several positions within a same page, using axf:suppress-duplicate-footnote prevents them from being duplicated and displayed within the same footnote region. In this page, a duplicated display is controlled with axf:suppress-duplicate-footnote="true".
		</fo:block>
		<fo:block font-size="1.2em" text-align="justify">
		<fo:block>
		ABCDE
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		footnote sample 1
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		EDCBA
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		footnote sample 2
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		AH Formatter is a most powerful formatting and printing software
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(3)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(3)
		</fo:inline>
		Depending on the formatting capability, AH Formatter (formatting using XSL-FO and CSS) and AH CSS Formatter (formatting using CSS) are available.
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		using XSL-FO and XML/HTML with CSS.
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(4)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(4)
		</fo:inline>
		XSL-FO and CSS cannot be mixed.
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		This software conforms to XSL 1.1,
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(5)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(5)
		</fo:inline>
		See also [XSL-FO Conformance] in the online manual.
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		which is a specification for displaying / printing XML documents in a fine manner. Also it supports the page formatting with the layout setting by the CSS Level 3 specification which is currently under formulation in the CSS Working Group.
		</fo:block>
		<fo:block>
		ABCDE
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		footnote sample 1
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		EDCBA
		<fo:footnote axf:suppress-duplicate-footnote="true">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		footnote sample 2
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		</fo:block>
		</fo:flow>
		</fo:page-sequence>
		<fo:page-sequence master-reference="PageMaster2">
		<fo:static-content flow-name="xsl-region-after">
		<fo:block font-size="0.8em" text-align="right" color="green">
		<fo:basic-link external-destination="http://www.antennahouse.com/">
		Antenna House, Inc.
		</fo:basic-link>
		</fo:block>
		</fo:static-content>
		<fo:static-content flow-name="xsl-footnote-separator">
		<fo:block>
		<fo:leader leader-length="30%" leader-pattern="dots"/>
		</fo:block>
		</fo:static-content>
		<fo:flow flow-name="xsl-region-body" font-family="serif" font-size="1em" line-height="1.4" axf:hyphenate-hyphenated-word="false" hyphenate="true">
		<fo:block span="all" space-before="1em" space-after="1em" space-after.conditionality="retain" text-indent="0em" border="1pt solid #9999FF" start-indent="0.5em" end-indent="0.5em" padding="0.5em" text-align="justify">
		Since axf:suppress-duplicate-footnote is not specified in the second page, the same footnote is duplicated in the footnote region.
		</fo:block>
		<fo:block font-size="1.2em" text-align="justify">
		<fo:block>
		ABCDE
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		footnote sample 1
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		EDCBA
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		footnote sample 2
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		AH Formatter is a most powerful formatting and printing software
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(3)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(3)
		</fo:inline>
		Depending on the formatting capability, AH Formatter (formatting using XSL-FO and CSS) and AH CSS Formatter (formatting using CSS) are available.
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		using XSL-FO and XML/HTML with CSS.
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(4)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(4)
		</fo:inline>
		XSL-FO and CSS cannot be mixed.
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		This software conforms to XSL 1.1,
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(5)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(5)
		</fo:inline>
		See also [XSL-FO Conformance] in the online manual.
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		which is a specification for displaying / printing XML documents in a fine manner. Also it supports the page formatting with the layout setting by the CSS Level 3 specification which is currently under formulation in the CSS Working Group.
		</fo:block>
		<fo:block>
		ABCDE
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(1)
		</fo:inline>
		footnote sample 1
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		<fo:block>
		EDCBA
		<fo:footnote>
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		<fo:footnote-body>
		<fo:block font-size="0.9em" text-indent="0em">
		<fo:inline baseline-shift="super" font-size="0.75em">
		(2)
		</fo:inline>
		footnote sample 2
		</fo:block>
		</fo:footnote-body>
		</fo:footnote>
		</fo:block>
		</fo:block>
		</fo:flow>
		</fo:page-sequence>
		</fo:root>

Download der Beispiele

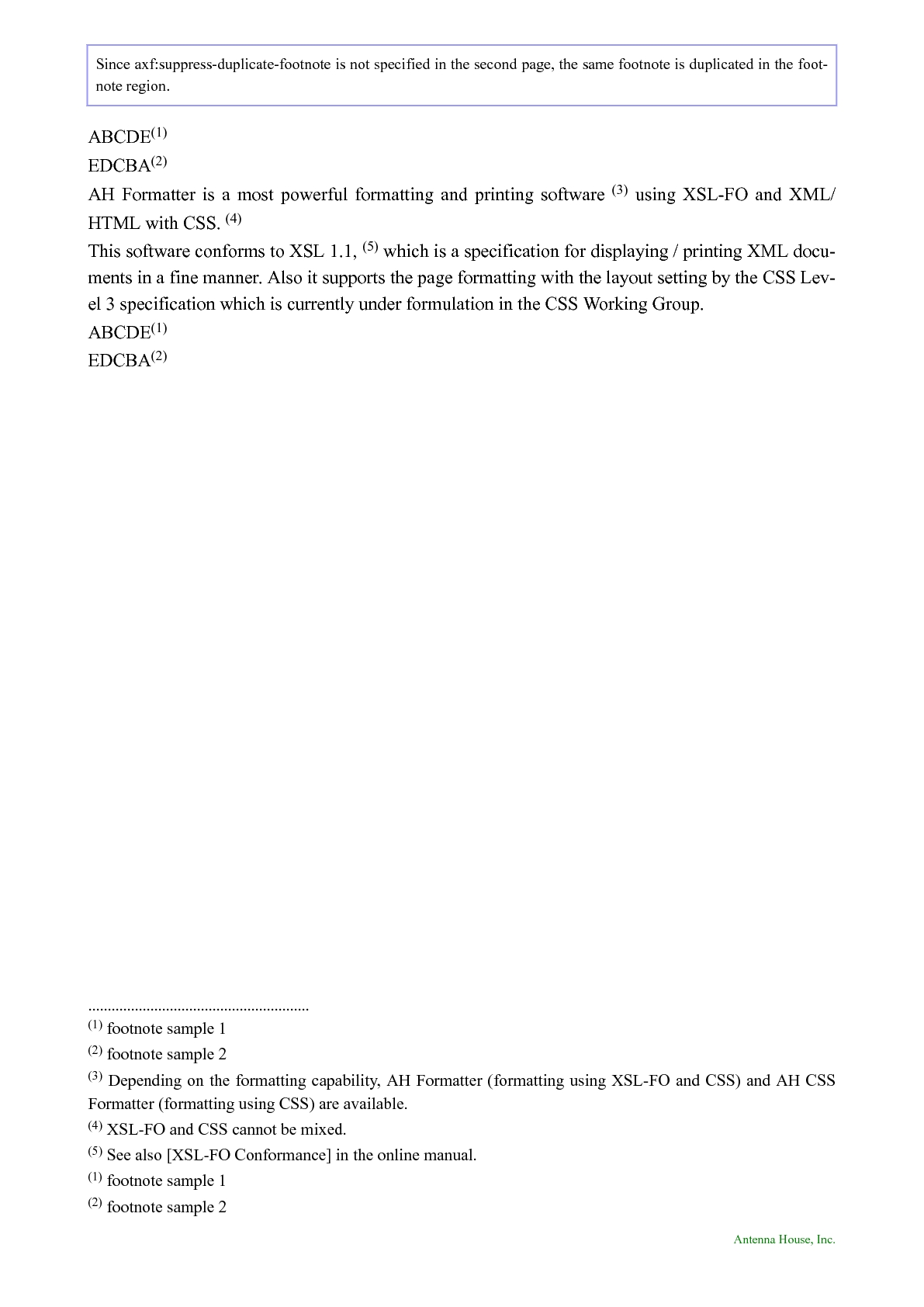

Output:

page 2
