axf:action-type

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Bookmark and Link in PDF Output >> Making Link

Specifies the action of external link or form action. In CSS, form actions are invalid.

Value:	gotor \| launch \| uri \| reset \| submit \| auto
Initial:	auto
Applies to:	fo:basic-link, axf:form-field
Inherited:	no
Percentages:	N/A

Values have the following meanings.

gotor	Opens the link destination by the "GoToR" action as PDF. The URI of the destination is regarded as PDF.
launch	Opens the link destination by the "Launch" action as the file.
uri	Opens the link destination by the "URI" action as URI (World Wide Web).
reset no-LT	Resets a form filed as a form action and can be specified to axf:form-field. It's invalid in CSS.
submit no-LT	Submits a form filed as a form action and can be specified to axf:form-field. It's invalid in CSS.
auto	Dependent on the system setting.

When the link destination is not a local file, such as http:, the action type is "URI" at any time. When axf:action-type="auto" specified, the external link specified by the relative address is transformed into either 'Open the file' or 'World Wide Web link' by the use-launch-for-relative-uri property in PDF Output Setting. The external link specified by the absolute address is always transformed into 'World Wide Web link'.

XSL-FO sample:

		<fo:root hyphenation-push-character-count="1" hyphenation-remain-character-count="1" font-size="12pt" font-family="Arial" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">
		<fo:layout-master-set>
		<fo:simple-page-master master-name="simple">
		<fo:region-body margin="1in"/>
		</fo:simple-page-master>
		</fo:layout-master-set>
		<fo:page-sequence master-reference="simple">
		<fo:flow flow-name="xsl-region-body">
		<axf:form external-destination="http://some-fake-addess.com" field-submit-method="get">
		<fo:block>
		<fo:block>
		Text Box
		</fo:block>
		<fo:block>
		<axf:form-field field-type="text" color="black" field-name="textfield" width="20em" height="1.2em" border="1pt solid black"/>
		</fo:block>
		<fo:block>
		Radio Buttons
		</fo:block>
		<fo:block>
		Option 1
		<axf:form-field border="1pt solid black" field-type="radio" field-checked="true" field-checked-style="circle" field-name="Radio" field-value="Option1" width="1em" height="1em"/>
		Option 2
		<axf:form-field border="1pt solid black" field-type="radio" field-checked="false" field-checked-style="circle" field-name="Radio" field-value="Option2" width="1em" height="1em"/>
		</fo:block>
		<fo:block>
		Checkbox
		</fo:block>
		<axf:form-field border="1pt solid black" field-type="checkbox" field-checked="true" field-checked-style="checkmark" width="1em" height="1em"/>
		<fo:block>
		Dropdown List
		</fo:block>
		<axf:form-field field-type="combobox" field-top-index="1" field-editable="false" width="20em" height="1.2em" border="1pt solid black">
		<axf:form-field-option field-value="1">
		option1
		</axf:form-field-option>
		<axf:form-field-option field-value="2">
		option2
		</axf:form-field-option>
		<axf:form-field-option field-value="3">
		option3
		</axf:form-field-option>
		</axf:form-field>
		<fo:block>
		List Box
		</fo:block>
		<axf:form-field field-type="listbox" field-top-index="1" field-multiple="false" width="20em" height="3.6em" border="1pt solid black">
		<axf:form-field-option field-value="1">
		option1
		</axf:form-field-option>
		<axf:form-field-option field-value="2">
		option2
		</axf:form-field-option>
		<axf:form-field-option field-value="3">
		option3
		</axf:form-field-option>
		<axf:form-field-option field-value="4">
		option4
		</axf:form-field-option>
		<axf:form-field-option field-value="5">
		option5
		</axf:form-field-option>
		<axf:form-field-option field-value="6">
		option6
		</axf:form-field-option>
		</axf:form-field>
		<fo:block>
		Password Box
		</fo:block>
		<axf:form-field field-type="text" field-default-text="" field-multiline="false" field-scroll="false" field-password="true" field-maxlen="50" width="20em" height="1.2em" border="1pt solid black"/>
		<fo:block>
		Text Area
		</fo:block>
		<axf:form-field field-type="text" field-default-text="text area" field-multiline="true" field-scroll="true" field-password="false" field-maxlen="500" width="20em" height="3.6em" border="1pt solid black"/>
		<fo:block>
		Submit Button
		</fo:block>
		<axf:form-field field-type="button" field-name="SubmitButton" action-type="submit" field-button-layout="caption" field-button-face="Submit" width="5em" background-color="#eee" border="2px silver outset"/>
		</fo:block>
		</axf:form>
		</fo:flow>
		</fo:page-sequence>
		</fo:root>

Download der Beispiele

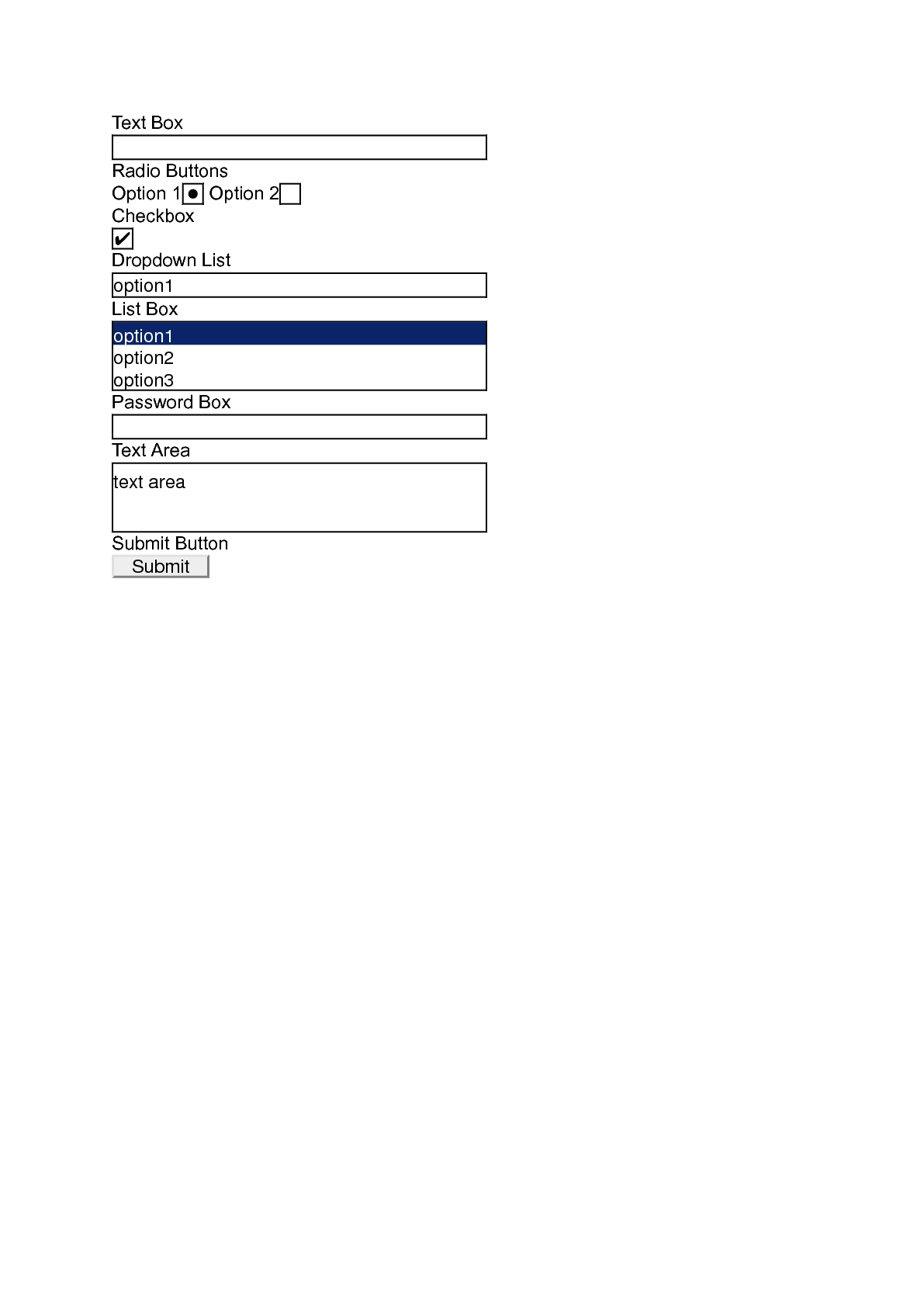

Output:
