axf:transform

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Block Extensions >> Transformation

Specifies the block transformation. [CSS3-Transforms] The ‘transform’ Property[no-LT]

Value:	none \| <transform-function> [ <transform-function> ]*
Initial:	none
Applies to:	transformable objects
Inherited:	no
Percentages:	N/A

Values have the following meanings.

none

Does not transform the block.

<transform-function>

Performs the specified transformation. The following transformations can be specified.

matrix(<number>, <number>, <number>, <number>, <number>, <number>)
translate(<translation-value>[, <translation-value>])
translateX(<translation-value>)
translateY(<translation-value>)
scale(<number>[, <number>])
scaleX(<number>)
scaleY(<number>)
rotate(<angle>)
skew(<angle>[, <angle>])
skewX(<angle>)
skewY(<angle>)

This property is not available with AH Formatter V6.3 Lite.

XSL-FO sample:

		<fo:root xml:lang="en" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">
		<axf:document-info name="document-title" value="Block area transformation"/>
		<axf:document-info name="author" value="Antenna House, Inc."/>
		<fo:layout-master-set>
		<fo:simple-page-master page-height="297mm" page-width="210mm" margin-top="10mm" margin-left="20mm" margin-right="20mm" margin-bottom="10mm" master-name="PageMaster1">
		<fo:region-after extent="7mm"/>
		<fo:region-body margin-top="0mm" margin-left="0mm" margin-right="0mm" margin-bottom="10mm"/>
		</fo:simple-page-master>
		</fo:layout-master-set>
		<fo:page-sequence master-reference="PageMaster1">
		<fo:static-content flow-name="xsl-region-after">
		<fo:block font-size="0.8em" text-align="right" color="green">
		<fo:basic-link external-destination="http://www.antennahouse.com/">
		Antenna House, Inc.
		</fo:basic-link>
		</fo:block>
		</fo:static-content>
		<fo:flow flow-name="xsl-region-body" font-family="serif" font-size="1em" line-height="1.4" axf:hyphenate-hyphenated-word="false" hyphenate="true">
		<fo:block span="all" font-family="sans-serif" font-size="2em" font-weight="bold" line-height="2" space-before="1em" space-after="1em" space-before.conditionality="retain" space-after.conditionality="retain" background-color="#EEEEEE">
		<fo:block start-indent="1em" end-indent="1em">
		Block area transformation
		</fo:block>
		</fo:block>
		<fo:block span="all" space-before="1em" space-after="1em" space-after.conditionality="retain" text-indent="0em" border="1pt solid #9999FF" start-indent="0.5em" end-indent="0.5em" padding="0.5em" text-align="justify">
		By using axf:transform, angles of block area can be transformed. Specify the angle by rotate, skew, etc. Origin points of block transformation can be specified with axf:transform-origin.
		</fo:block>
		<fo:block space-before="1em" font-family="sans-serif" font-size="1.2em" font-weight="bold" text-indent="0em" line-height="2" keep-with-next.within-column="always">
		If rotate(-15deg) is specified
		</fo:block>
		<fo:block axf:transform="translate(10px,10px) rotate(-15deg)" border="#f80 solid 1px" font-size="1.5em" space-after="3.0em" margin-right="50%">
		Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam bibendum tincidunt pharetra.
		</fo:block>
		<fo:block space-before="1em" font-family="sans-serif" font-size="1.2em" font-weight="bold" text-indent="0em" line-height="2" keep-with-next.within-column="always">
		If skewX(-45deg) is specified
		</fo:block>
		<fo:block axf:transform="translate(40px,10px) skewX(-45deg)" border="#f80 solid 1px" font-size="1.5em" space-after="1.5em" margin-right="50%">
		Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam bibendum tincidunt pharetra.
		</fo:block>
		<fo:block space-before="1em" font-family="sans-serif" font-size="1.2em" font-weight="bold" text-indent="0em" line-height="2" keep-with-next.within-column="always">
		If rotate(-15deg), skewX(-45deg) is specified
		</fo:block>
		<fo:block axf:transform="translate(10px,30px) rotate(-15deg) skewX(-45deg)" border="#f80 solid 1px" font-size="1.5em" space-after="6.0em" margin-right="50%">
		Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam bibendum tincidunt pharetra.
		</fo:block>
		</fo:flow>
		</fo:page-sequence>
		</fo:root>

Download der Beispiele

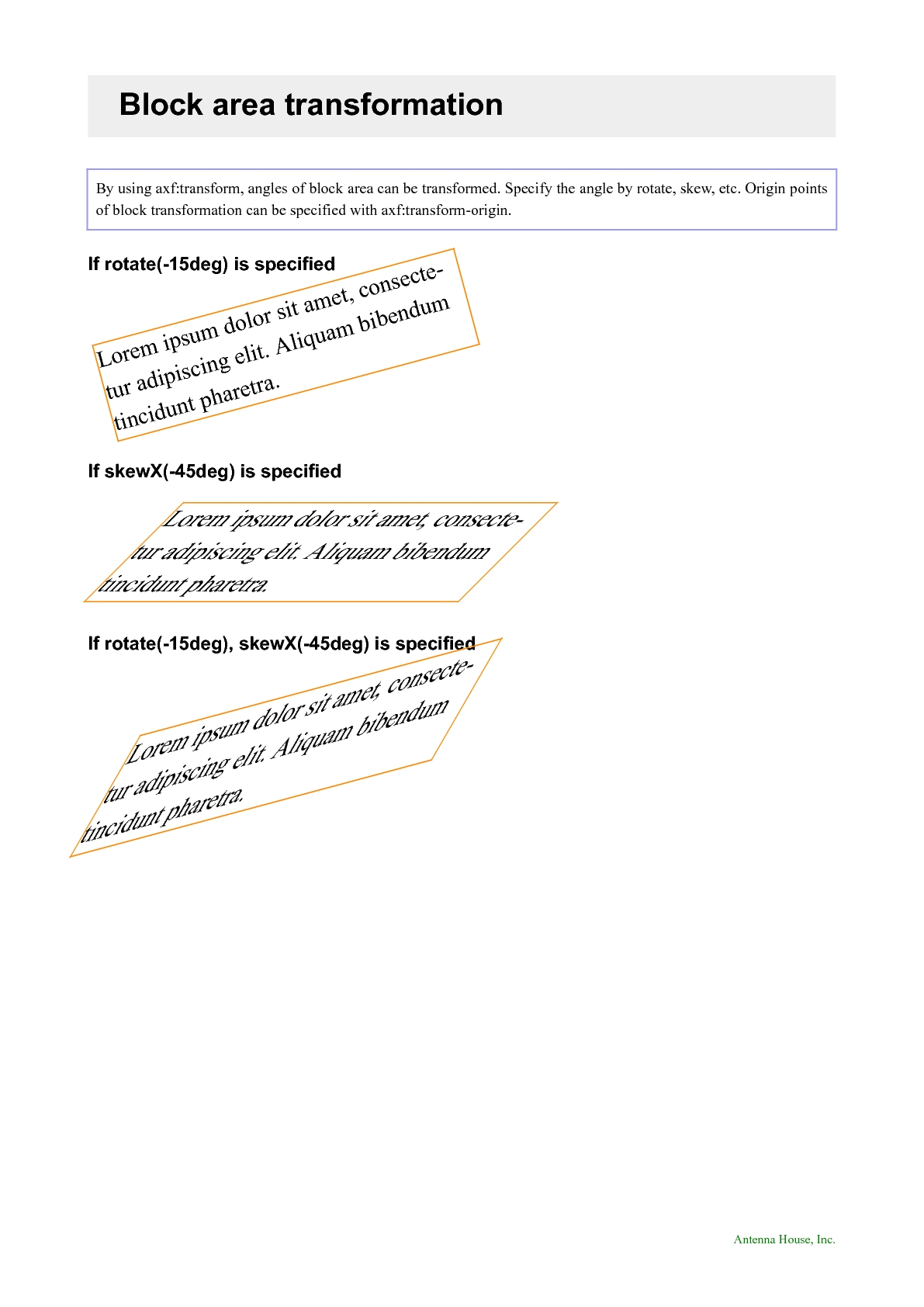

Output:
