Category Printer Marks

Specifies the line width of printer marks. [no-LT]

Value:<length> | auto
Applies to:fo:simple-page-master / CSS @page

When the value is auto, the width depends on the system setting. The default width of a printer mark is 0.24pt, it can be adjusted in the Option Setting File.

This property is not available with AH Formatter V6.3 Lite.

XSL-FO sample:

<fo:root xml:lang="en" xmlns:fo="" xmlns:cpfo="" xmlns:svg="" xmlns:axf="">

Antenna House, Inc.

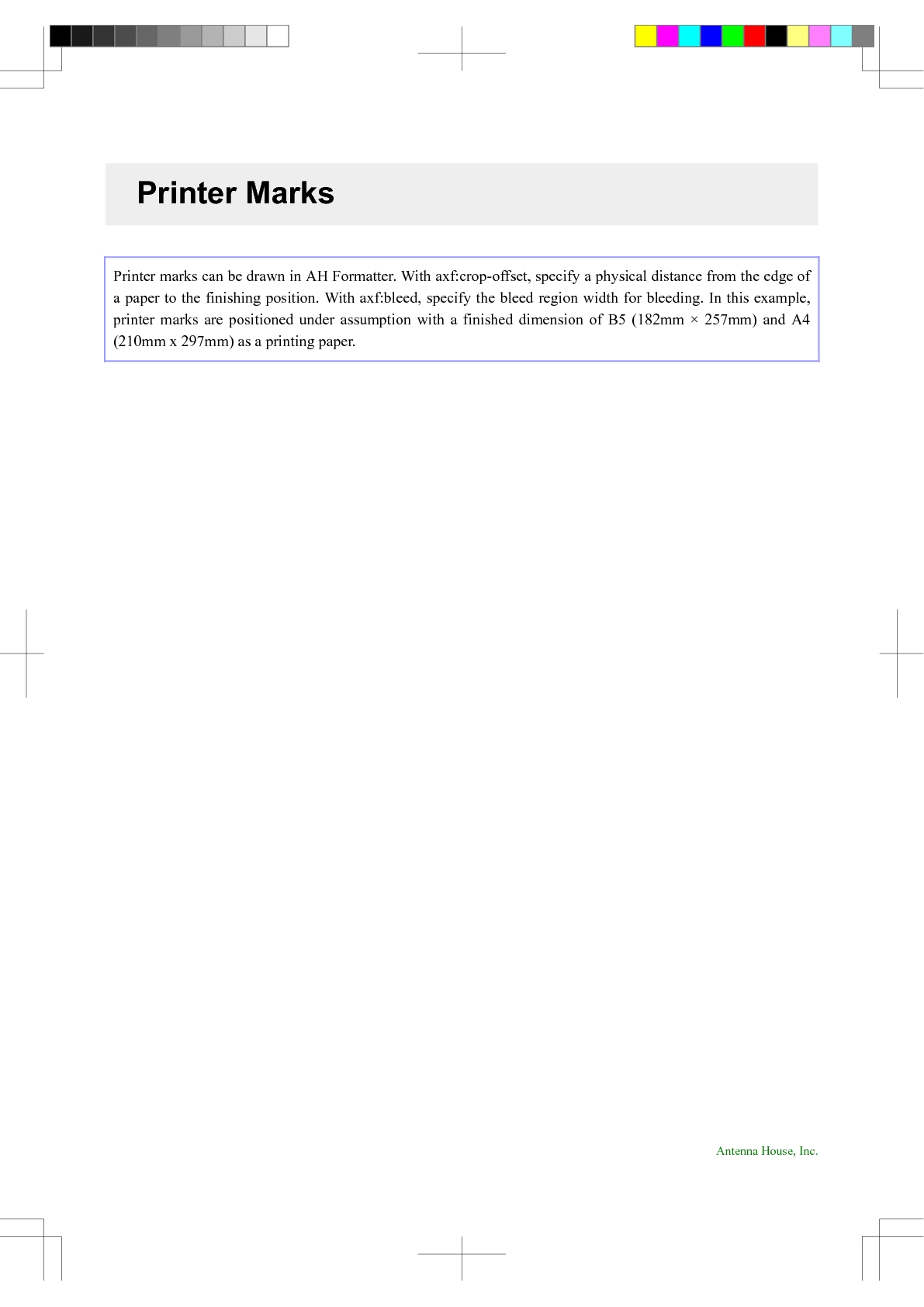

Printer Marks

Printer marks can be drawn in AH Formatter. With axf:crop-offset, specify a physical distance from the edge of a paper to the finishing position. With axf:bleed, specify the bleed region width for bleeding. In this example, printer marks are positioned under assumption with a finished dimension of B5 (182mm × 257mm) and A4 (210mm x 297mm) as a printing paper.
