axf:outline-title

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Bookmark and Link in PDF Output >> Making Bookmark

The axf:outline-title specifies the string which appears as a title of bookmarks.

Value:<string>
Initial:empty string
Applies to:block-level formatting objects
Inherited:no
Percentages:N/A

If this property is omitted or has an empty string, the text of the object to which the property is added will become the title. In other words, the following two samples create the same bookmark.

<fo:block axf:outline-level="2" axf:outline-title="1. Introduction">...
<fo:block axf:outline-level="2">1. Introduction</fo:block>

In CSS, (-ah-)bookmark-label is also available.

XSL-FO sample:

<fo:root font-family="Arial Unicode MS" font-size="12pt" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

volume 1 page 1

volume 1 page 2

volume 2 page 1

volume 2 page 2

Download der Beispiele

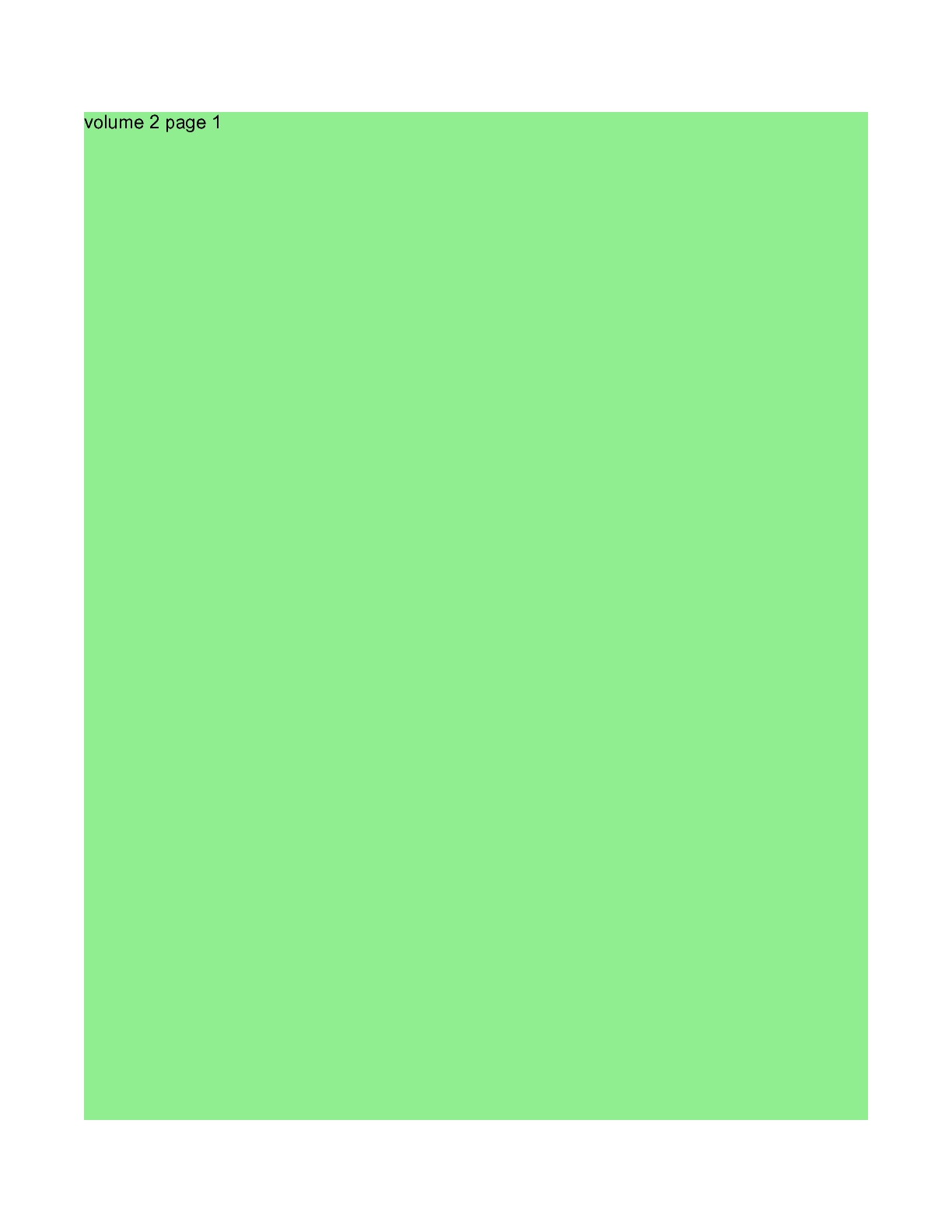

Output:

page 2

page 3

page 4
