axf:outline-level

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Bookmark and Link in PDF Output >> Making Bookmark

The axf:outline-level indicates the hierarchy level of bookmark items.

Value:<number>
Initial:0
Applies to:block-level formatting objects
Inherited:no
Percentages:N/A

The <number> must be a non-negative integer. Initial value is zero and it means that bookmarks should not be created. The highest level of bookmarks is 1 and it becomes 2 or more according to the hierarchy level of the bookmarks. In CSS, (-ah-)bookmark-level is also available.

XSL-FO sample:

<fo:root font-family="Arial Unicode MS" font-size="12pt" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

volume 1 page 1

volume 1 page 2

volume 2 page 1

volume 2 page 2

Download der Beispiele

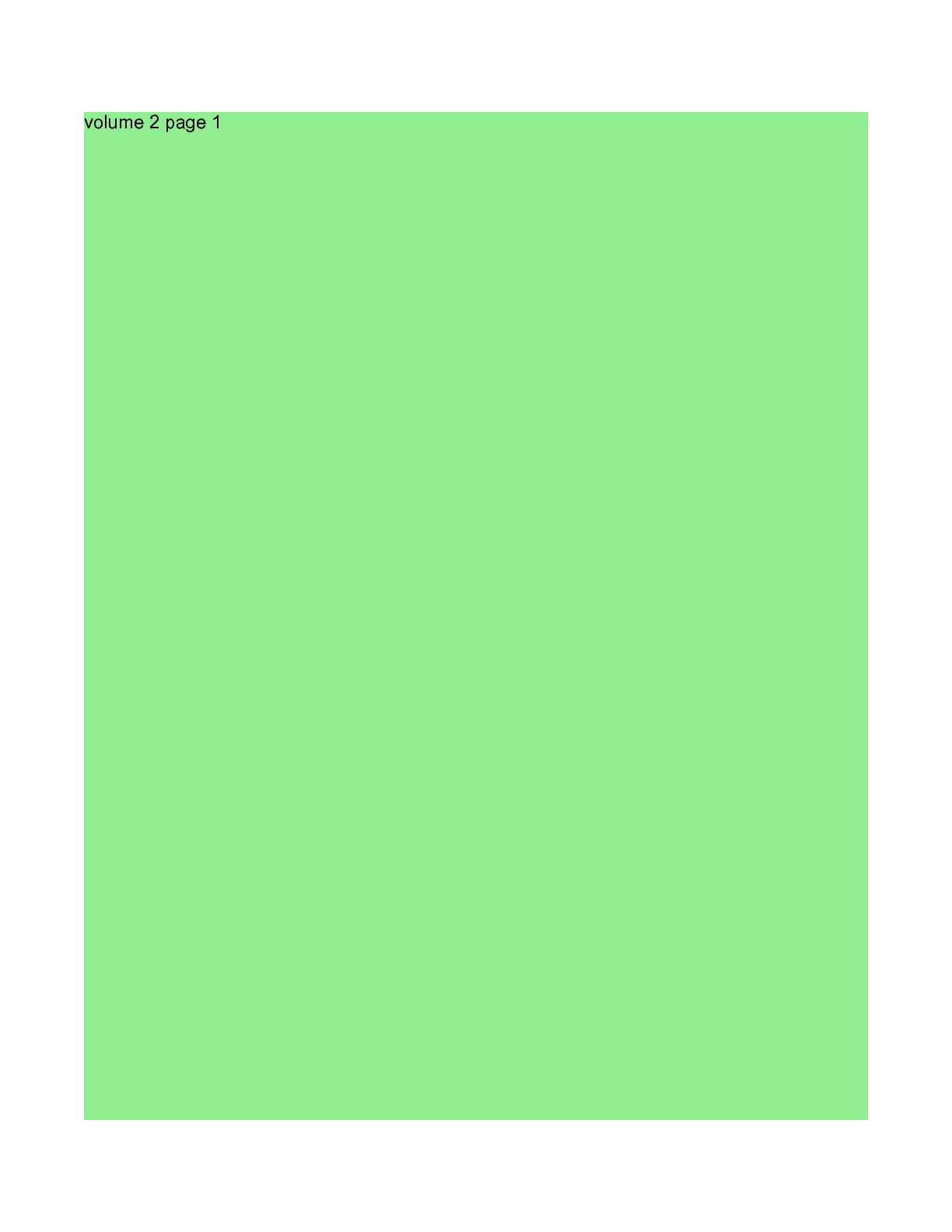

Output:

page 2

page 3

page 4
