axf:bleed-bottom

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Printer Marks

Specifies the width of the bleed region for cutting off. [CSS3-GCPM] Page marks and bleed area[no-LT]

Value:<length>
Initial:0pt
Applies to:fo:simple-page-master / CSS @page
Inherited:no
Percentages:N/A

The region of the bleed is taken outside the trim size. In order to specify the same values vertically and horizontally, axf:bleed can be used. In order to specify individual values, axf:bleed-top, axf:bleed-bottom, axf:bleed-left, and axf:bleed-right can be used. When axf:bleed and others are specified simultaneously, individual axf:bleed-* properties take priority.

These properties are not available with AH Formatter V6.3 Lite.

XSL-FO sample:

<fo:root xml:lang="en" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

Antenna House, Inc.

Printer Marks

Printer marks can be drawn in AH Formatter. With axf:crop-offset, specify a physical distance from the edge of a paper to the finishing position. With axf:bleed, specify the bleed region width for bleeding. In this example, printer marks are positioned under assumption with a finished dimension of B5 (182mm × 257mm) and A4 (210mm x 297mm) as a printing paper.

Download der Beispiele

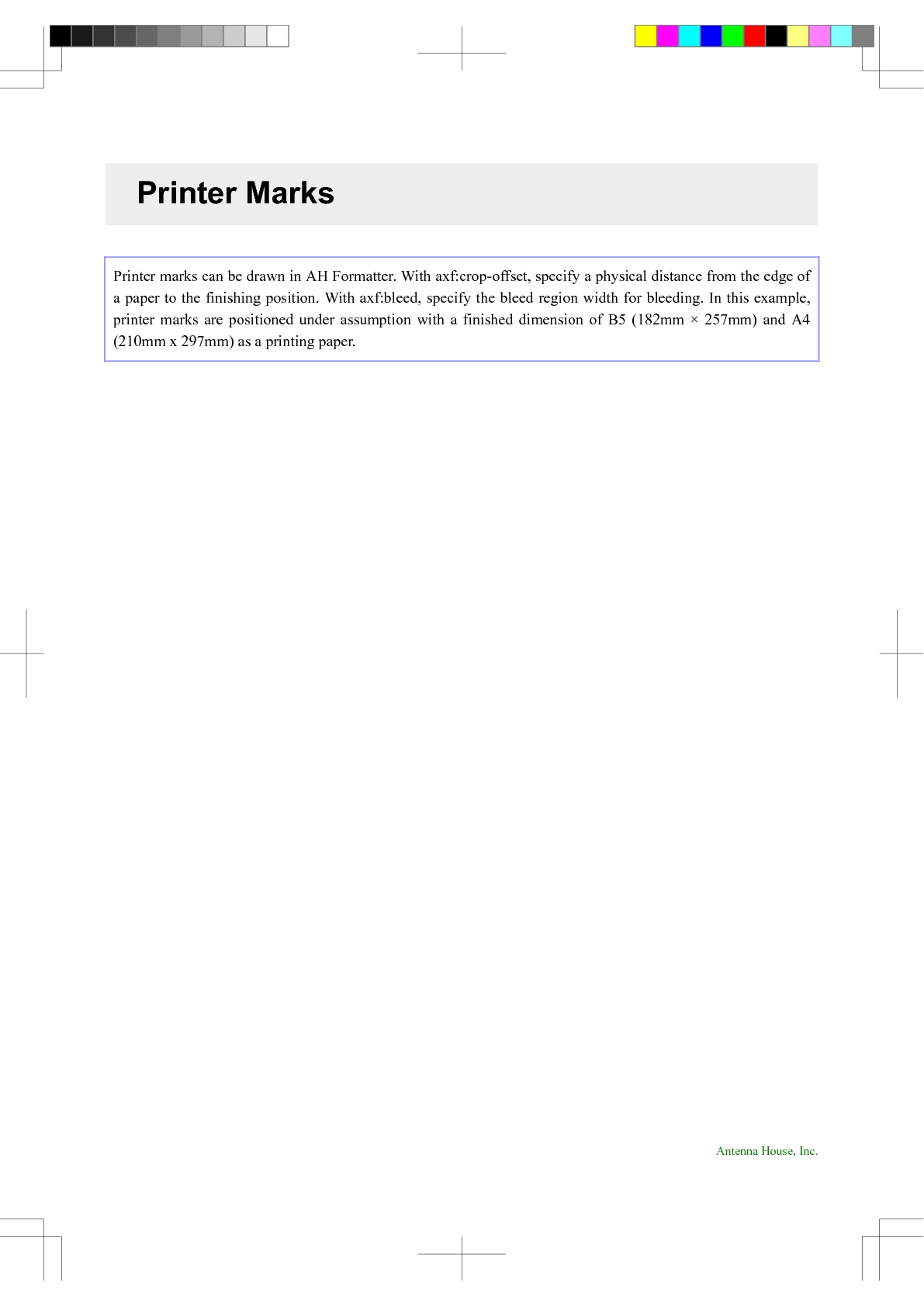

Output:
