Category Spacing and Alignment >> Adding Space

The axf:text-autospace specifies whether to add space surrounding ideographic glyphs or not. [CSS3-Text] Adding space: the ‘text-autospace’ property

Value:none | [ ideograph-numeric || ideograph-alpha || ideograph-parenthesis ] | auto
Initial:auto
Applies to:all block-level and inline-level formatting objects
Inherited:yes
Percentages:N/A

Values have the following meanings.

none Space is not added.
ideograph-numeric Space is added between ideograph character and non-ideographic number character. Non-ideographic number character mentioned here indicates the character of Nd classified by Unicode and the non-full-width character.
ideograph-alpha Space is added between ideograph character and non-ideographic alphabet character. Non-ideographic alphabet character mentioned here indicates the character of Lu, Ll, Lt and Lm classified by Unicode.
ideograph-parenthesis Space is added between ideograph character and non-ideographic parenthesis character. However space is not added between ideograph character and non-ideographic closing parenthesis or between non-ideographic opening parenthesis and ideograph character.
auto Dependent on the system setting. It's regarded as "none" or "ideograph-numeric ideograph-alpha" according to the setting.

The initial value of whether space is added or not can be set by text-autospace in the Option Setting File. It can also be set in the Format Option Setting Dialog in the GUI.

XSL-FO sample:

<fo:root xml:lang="en" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

Antenna House, Inc.

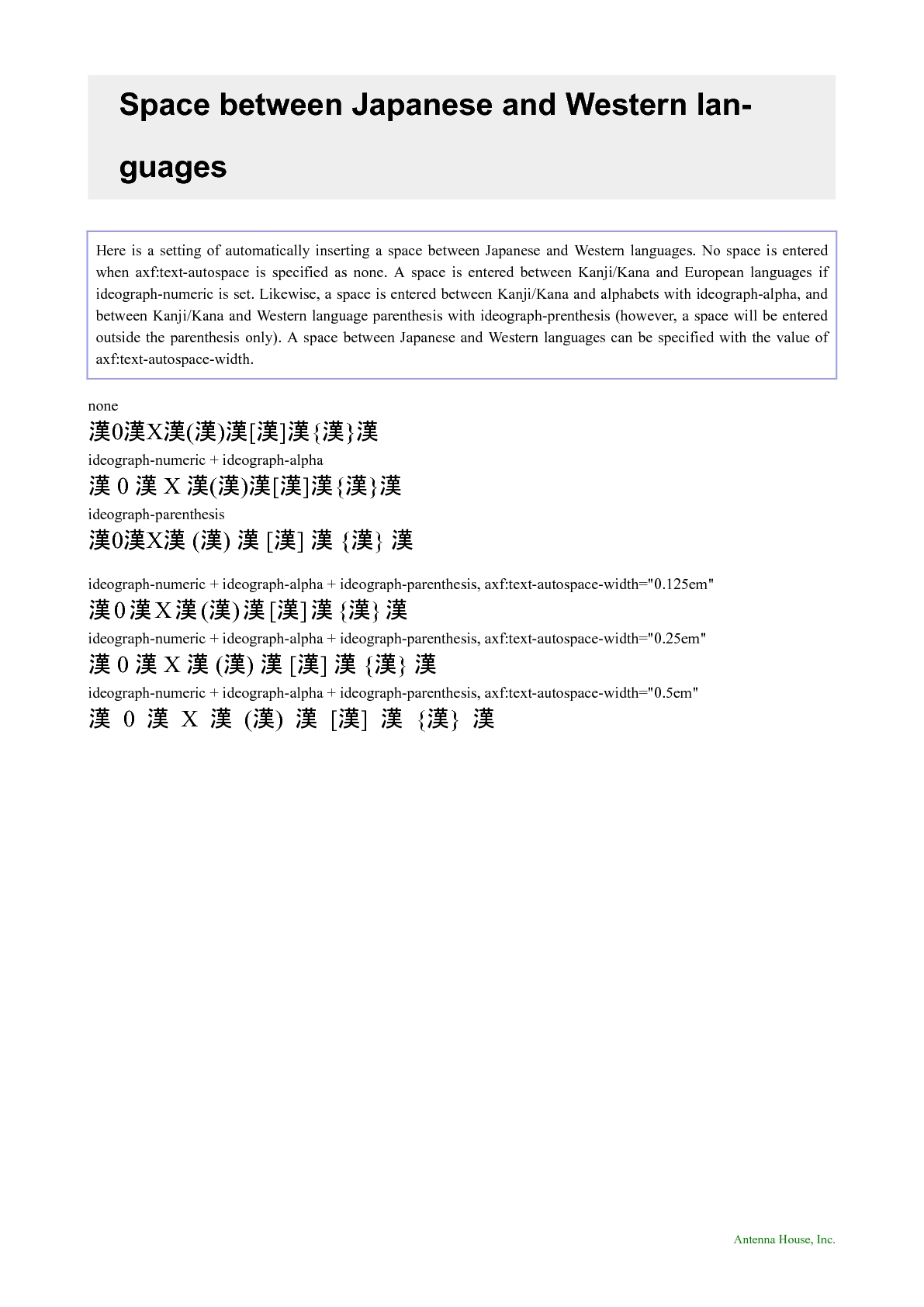

Space between Japanese and Western languages

Here is a setting of automatically inserting a space between Japanese and Western languages. No space is entered when axf:text-autospace is specified as none. A space is entered between Kanji/Kana and European languages if ideograph-numeric is set. Likewise, a space is entered between Kanji/Kana and alphabets with ideograph-alpha, and between Kanji/Kana and Western language parenthesis with ideograph-prenthesis (however, a space will be entered outside the parenthesis only). A space between Japanese and Western languages can be specified with the value of axf:text-autospace-width.

none

漢0漢X漢(漢)漢[漢]漢{漢}漢

ideograph-numeric + ideograph-alpha

漢0漢X漢(漢)漢[漢]漢{漢}漢

ideograph-parenthesis

漢0漢X漢(漢)漢[漢]漢{漢}漢

ideograph-numeric + ideograph-alpha + ideograph-parenthesis, axf:text-autospace-width="0.125em"

漢0漢X漢(漢)漢[漢]漢{漢}漢

ideograph-numeric + ideograph-alpha + ideograph-parenthesis, axf:text-autospace-width="0.25em"

漢0漢X漢(漢)漢[漢]漢{漢}漢

ideograph-numeric + ideograph-alpha + ideograph-parenthesis, axf:text-autospace-width="0.5em"

漢0漢X漢(漢)漢[漢]漢{漢}漢

Download der Beispiele

Output:
