Category Printer Marks

Specifies the distance from the physical end to the trim size of the output medium. [no-LT]

Applies to:fo:simple-page-master / CSS @page

The trim size is specified by the page-width and page-height properties (CSS size property). crop-offset is for specifying how much the space is taken outside the trim size. In order to specify the same values vertically and horizontally, axf:crop-offset can be used. In order to specify individual values, axf:crop-offset-top, axf:crop-offset-bottom, axf:crop-offset-left, and axf:crop-offset-right can be used. When axf:crop-offset and others are specified simultaneously, individual axf:crop-offset-* properties take priority.

These properties are not available with AH Formatter V6.3 Lite.

XSL-FO sample:

<fo:root xml:lang="en" xmlns:fo="" xmlns:cpfo="" xmlns:svg="" xmlns:axf="">

Antenna House, Inc.

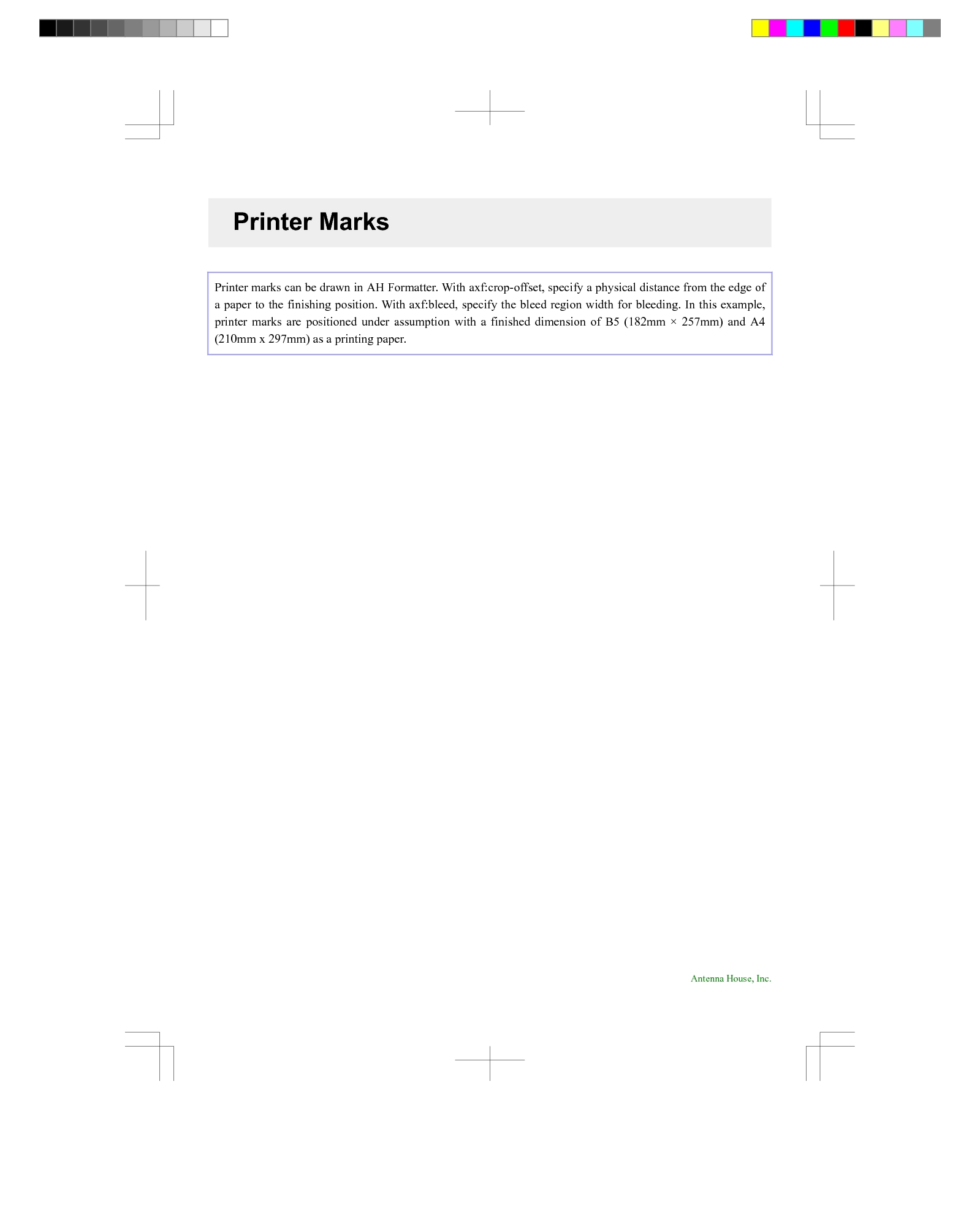

Printer Marks

Printer marks can be drawn in AH Formatter. With axf:crop-offset, specify a physical distance from the edge of a paper to the finishing position. With axf:bleed, specify the bleed region width for bleeding. In this example, printer marks are positioned under assumption with a finished dimension of B5 (182mm × 257mm) and A4 (210mm x 297mm) as a printing paper.

Download der Beispiele
