Das SVRL-Schema

(Auszug aus "Schematron - Effiziente Business Rules für XML-Dokumente", Kapitel 9)

Die Struktur eines SVRL-Dokumentes ist relativ übersichtlich gehalten. Im Folgenden stellen wir nun alle Elemente sowie deren Attribute vor:

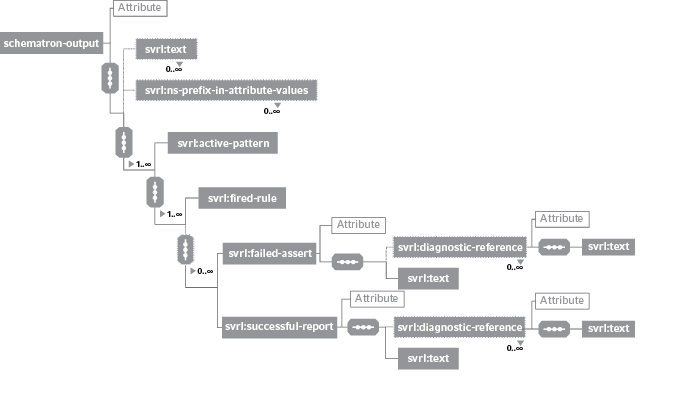

Grafische Darstellung des SVRL-Schemas

Abbildung: Grafische Darstellung des SVRL-Schemas

Hier nun noch das dazugehörige Schema aus dem RELX NG-Standard in kompakter Syntax:

#
#   (c) International Organization for Standardization 2005.
#   Permission to copy in any form is granted for use with conforming
#   SGML systems and applications as defined in ISO 8879,
#   provided this notice is included in all copies.
#
default namespace = "http://purl.oclc.org/dsdl/svrl"
schematron-output = element schematron-output {
attribute title { text }?,
attribute phase { xsd:NMTOKEN }?,
attribute schemaVersion { text }?,
human-text*,
ns-prefix-in-attribute-values*,
(active-Pattern,
(fired-rule, (failed-assert | successful-report)*)+)+
}
# only namespaces from sch:ns need to be reported
ns-prefix-in-attribute-values = element ns-prefix-in-attribute-values {
attribute prefix { xsd:NMTOKEN },
attribute uri { text },
empty
}
# only active patterns are reported
active-pattern = element active-pattern {
attribute id { xsd:ID }?,
attribute name { text }?,
attribute role { xsd:NMTOKEN }?,
empty
}
# only rules that are fired are reported
fired-rule =
element fired-rule {
attribute id { xsd:ID }?,
attribute context { text },
attribute role { xsd:NMTOKEN }?,
attribute flag { xsd:NMTOKEN }?,
empty
}
# only references are reported, not the diagnostic
diagnostic-reference = element diagnostic-reference {
attribute diagnostic { xsd:NMTOKEN },
human-text
}
# only failed assertions are reported
failed-assert = element failed-assert {
attlist.assert-and-report,
diagnostic-reference*,
human-text
}
# only successful asserts are reported
successful-report = element successful-report {
attlist.assert-and-report,
diagnostic-reference*,
human-text
}
human-text = element text { text }
attlist.assert-and-report = attribute id { xsd:ID }?,
attribute location { text },
attribute test { text },
attribute role { xsd:NMTOKEN }?,
attribute flag { xsd:NMTOKEN }?
start = schematron-output
