axf:ruby-limit-space

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Ruby Extended Properties

Specifies the limit of the amount of spaces leading and following the ruby text when the ruby text is shorter than its base characters.

Value:<number> | <length> | <percentage> | none
Initial:1.0
Applies to:axf:ruby
Inherited:yes
Percentages:refer to the font size

Values have the following meanings.

<number>The used value is this number multiplied by the font size of the ruby text (axf:ruby-font-size). The value must be non-negative.
<length>Specifies the length. The value must be non-negative.
<percentage>The computed value is this percentage multiplied by the font size of the axf:ruby element (not the font size of the ruby text). The value must be non-negative.
noneDoes not limit the amount of the space.

Possible to avoid generating too much spaces leading and followings the ruby text because the ruby text is too shorter than its base characters when axf:ruby-align="distribute-space" is specified. The amount of the space will be limited to the specified value.

<ruby ruby-limit-space="none"><rb>なげきの聖母像</rb><rt>ピエタ</rt></ruby>

<ruby ruby-limit-space="1.0"><rb>なげきの聖母像</rb><rt>ピエタ</rt></ruby>

XSL-FO sample:

<fo:root xml:lang="ja" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

Antenna House, Inc.

ルビの文字への掛かり方の表現例

axf:ruby-overhang によりルビを隣の文字にどのように掛けるか指定します。ルビが親文字より長い場合は、axf:ruby-limit-overhang で掛かる量の限界値、短い場合は axf:ruby-limit-space で前後の空き量を設定できます。

axf:ruby-overhang(ルビを隣の文字へ掛ける方法の設定)

none(隣の文字へ掛けません)、start(start側の文字に掛けます)、end(end側の文字に掛けます)

axf:ruby-overhang="none"

つばめ

axf:ruby-overhang="start"

つばめ

axf:ruby-overhang="end"

つばめ

except-kanji(隣の文字が漢字のときは掛けません)、except-katakana(隣の文字が片仮名のときは掛けません)

axf:ruby-overhang="except-kanji"

つばめ

axf:ruby-overhang="except-katakana"

つばめ

except-start-open-parenthesis(start側が開き括弧類のときは掛けません)、except-end-close-parenthesis(end側が閉じ括弧類のときは掛けません)

axf:ruby-overhang="except-start-open-parenthesis"

つばめ

axf:ruby-overhang="except-end-close-parenthesis"

つばめ

axf:ruby-limit-overhang(ルビが親文字より長い場合の隣りの文字に掛ける限界量)

限界量は number(ルビのフォントサイズと掛け合わせた値)、length(長さ指定)、percentage(フォントサイズと掛け合わせた値)で指定します。

axf:ruby-limit-overhang="1.0"(既定値)

つばめ

axf:ruby-limit-overhang="0"

つばめ

axf:ruby-limit-space(ルビが親文字より短い場合の前後のアキ量の限界)

アキ量の限界は number(ルビのフォントサイズと掛け合わせた値)、length(長さ指定)、percentage(フォントサイズと掛け合わせた値)で指定、none はアキ量の制限をしません。

axf:ruby-limit-space="1.0"(既定値)

なげきの聖母像

ピエタ

axf:ruby-limit-space="0"

なげきの聖母像

ピエタ

axf:ruby-limit-space="none"

なげきの聖母像

ピエタ

Download der Beispiele

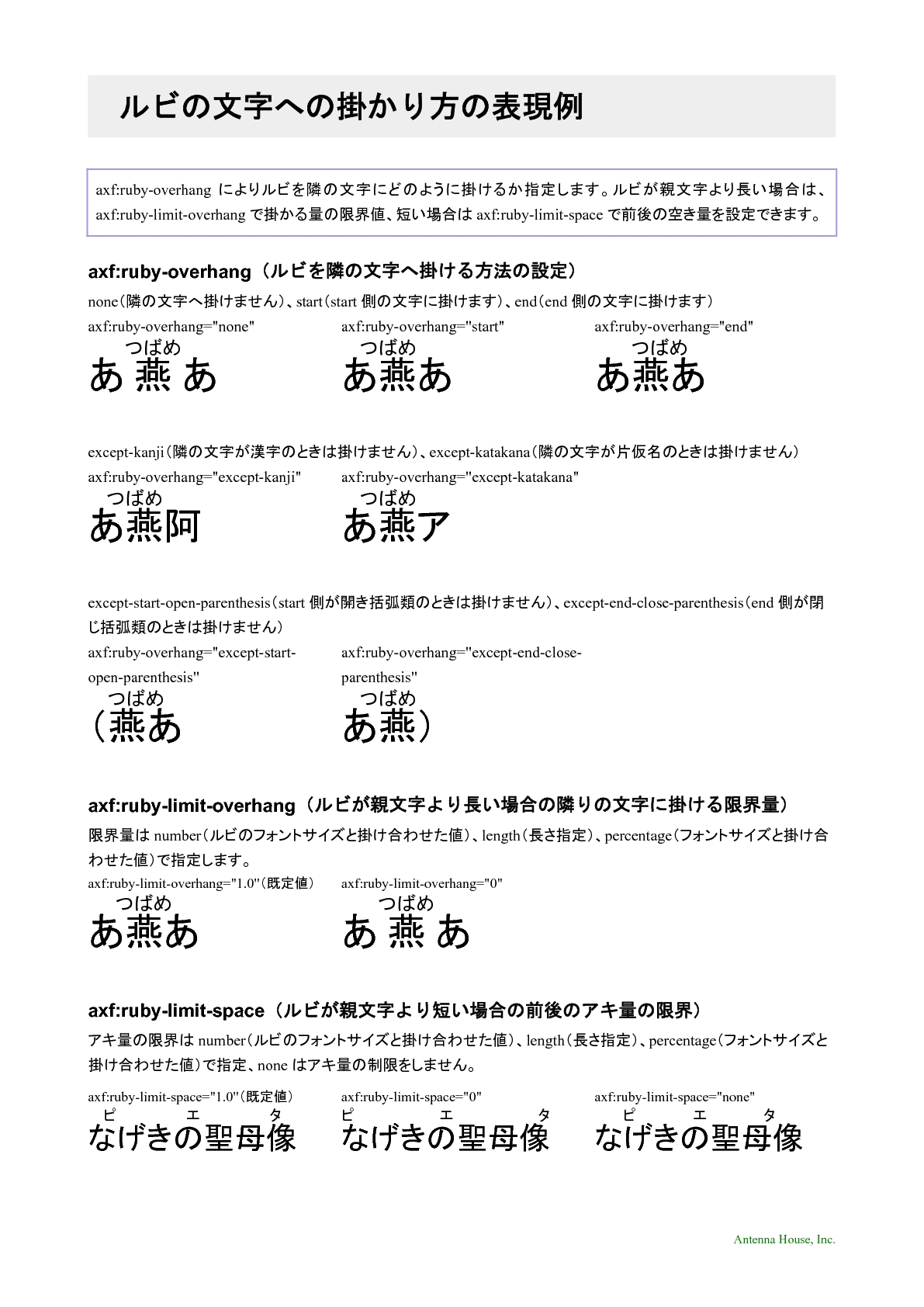

Output:
