axf:punctuation-trim

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Trimming and Hanging

Specifies whether to treat full width punctuations in Japanese. [CSS3-Text] Fullwidth Punctuation Kerning: the ‘punctuation-trim’ property

Value:none | [ [ start | start-except-first ] || [ end | allow-end | end-except-fullstop ] || adjacent ] | all | <string> | auto
Initial:auto
Applies to:all block-level and inline-level formatting objects
Inherited:yes
Percentages:N/A

Values have the following meanings.

none Punctuation characters are not trimmed.
start Punctuation characters (open parenthesis etc.) at start of line are trimmed.
start-except-firstSame as start except for a start line of a paragraph or a line right after the forced line break.
end When text-align="right" or text-align="justify" (or text-align-last="justify") is specified and full width punctuation marks (closing parenthesis etc.) come to the end of the sentence, the character is treated as half width forcibly.
allow-end When text-align="right" or text-align="justify" (or text-align-last="justify") is specified and full width punctuation marks (closing parenthesis etc.) come to the end of the sentence, characters are treated as full width if text fits into one line, characters are treated as half width if text does not fit into one line.
end-except-fullstop Behaves as the same as the end value except for the following two characters.
U+3002IDEOGRAPHIC FULL STOP
U+FF0EFULLWIDTH FULL STOP

adjacent The space between a full width punctuation and a full width character in Japanese is trimmed.
  • Between full width close parenthesis and full width open parenthesis.
  • Between full width close parenthesis and full width close parenthesis.
  • Between full width close parenthesis and full width middle dots.
  • Between full width close parenthesis and full width space.
  • Between full width close parenthesis and full width non punctuation characters.
  • Between full width open parenthesis and full width open parenthesis.
  • Between full width middle dots and full width open parenthesis.
  • Between full width space and full width open parenthesis.
  • Between full width non punctuation character and full width open parenthesis.
Full width punctuation characters are treated the same as full width close parenthesis. The adjacent value is equivalent to axf:kerning-mode="contextual" with XSL Formatter V4.
all Trim all parentheses, middle dots, and punctuations of full width and treat them as half width.
<string> Behave the same as "all", but only the character included in the character strings specified here is treated as a half width. Other than parentheses, middle dots, and punctuations of full width are disregarded.
auto Dependent on the system setting. It is regarded as "none" or "start end adjacent" by punctuation-trim in the Option Setting File.

Full width punctuation open parenthesis processed by axf:punctuation-trim are:

U+2018LEFT SINGLE QUOTATION MARK
U+201CLEFT DOUBLE QUOTATION MARK
U+3008LEFT ANGLE BRACKET
U+300ALEFT DOUBLE ANGLE BRACKET
U+300CLEFT CORNER BRACKET
U+300ELEFT WHITE CORNER BRACKET
U+3010LEFT BLACK LENTICULAR BRACKET
U+3014LEFT TORTOISE SHELL BRACKET
U+3016LEFT WHITE LENTICULAR BRACKET
U+3018LEFT WHITE TORTOISE SHELL BRACKET
U+301ALEFT WHITE SQUARE BRACKET
U+301DREVERSED DOUBLE PRIME QUOTATION MARK
U+FF08FULLWIDTH LEFT PARENTHESIS
U+FF3BFULLWIDTH LEFT SQUARE BRACKET
U+FF5BFULLWIDTH LEFT CURLY BRACKET
U+FF5FFULLWIDTH LEFT WHITE PARENTHESIS

Full width punctuation close parenthesis processed by axf:punctuation-trim are:

U+2019RIGHT SINGLE QUOTATION MARK
U+201DRIGHT DOUBLE QUOTATION MARK
U+3009RIGHT ANGLE BRACKET
U+300BRIGHT DOUBLE ANGLE BRACKET
U+300DRIGHT CORNER BRACKET
U+300FRIGHT WHITE CORNER BRACKET
U+3011RIGHT BLACK LENTICULAR BRACKET
U+3015RIGHT TORTOISE SHELL BRACKET
U+3017RIGHT WHITE LENTICULAR BRACKET
U+3019RIGHT WHITE TORTOISE SHELL BRACKET
U+301BRIGHT WHITE SQUARE BRACKET
U+301EDOUBLE PRIME QUOTATION MARK
U+301FLOW DOUBLE PRIME QUOTATION MARK
U+FF09FULLWIDTH RIGHT PARENTHESIS
U+FF3DFULLWIDTH RIGHT SQUARE BRACKET
U+FF5DFULLWIDTH RIGHT CURLY BRACKET
U+FF60FULLWIDTH RIGHT WHITE PARENTHESIS

Full width punctuations processed by axf:punctuation-trim are:

U+3001IDEOGRAPHIC COMMA
U+3002IDEOGRAPHIC FULL STOP
U+FF0CFULLWIDTH COMMA
U+FF0EFULLWIDTH FULL STOP

Full width middle dots processed by axf:punctuation-trim are:

U+30FBKATAKANA MIDDLE DOT
U+FF1AFULLWIDTH COLON
U+FF1BFULLWIDTH SEMICOLON

CAUTION:To make the behavior of axf:punctuation-trim="both" in XSL Formatter V4 the same, please specify axf:punctuation-trim="start end" or axf:punctuation-trim="start allow-end" in AH Formatter V6.3. In addition, if you use this extension together with axf:kerning-mode="contextual", please specify axf:punctuation-trim="start end adjacent" etc. with AH Formatter V6.3.

XSL-FO sample:

<fo:root xml:lang="en" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

Antenna House, Inc.

Trimming Japanses full-width punctuations

Specifies whether the Japanese full-width punctuations are trimmed or not. If non is specified to axf:punctuation-trim, they are not trimmed. If start is specified, the full-width punctuation at the start of a line will become harf-width. If end is specified, the full-width at the end of a line will become half-width. text-align="right" or text-align="justify" can be specified in that case. It's also possible to make the target character string half-width by specifying axf:punctuation-trim. See also the other settings in this sample page.

none

(あいうえお)

start

(あいうえお)

end

(あいうえお)

start-except-first

It's same as start, but punctuations in the first line or the line right after the forcible line break are excluded.

(あいうえ(お))

allow-end

If the full-width punctuation comes at the end of a line and it fits in a line, it's kept as full-width, if it does not fit in a line, it's made half-width.

(あいうえおか)きくけこ)

end-except-fullstop

It is same as end, but U+3002 (。) and U+FF0E (.) are excluded.

(あいうえお)(かきくけこ。

adjacent

Trim the amount of the space between the full-width punctuation and the full-width character. (e.g. full-width opening parenthesis) The combination of the ajacent character strings before and after the space can be found in XSL/CSS Extensions in the online manual

axf:punctuation-trim="none"

((あいう);かき)、けこ

axf:punctuation-trim="adjacent"

((あいう);かき)、けこ

all、<string>

If all is specified, all parentheses, middle dots, and punctuations of full width are trimmed and treated as half width. <string> behaves the same as all, but only the character included in the character strings specified here is treated as a half width. See also XSL/CSS Extensions in the online manual for more character strings available.

axf:punctuation-trim="none"

【あ(あ“あ:あ〈・〉あ、あ”あ)あ】

axf:punctuation-trim="all"

【あ(あ“あ:あ〈・〉あ、あ”あ)あ】

axf:punctuation-trim="〉,、,”,),】"

【あ(あ“あ:あ〈・〉あ、あ”あ)あ】

Download der Beispiele

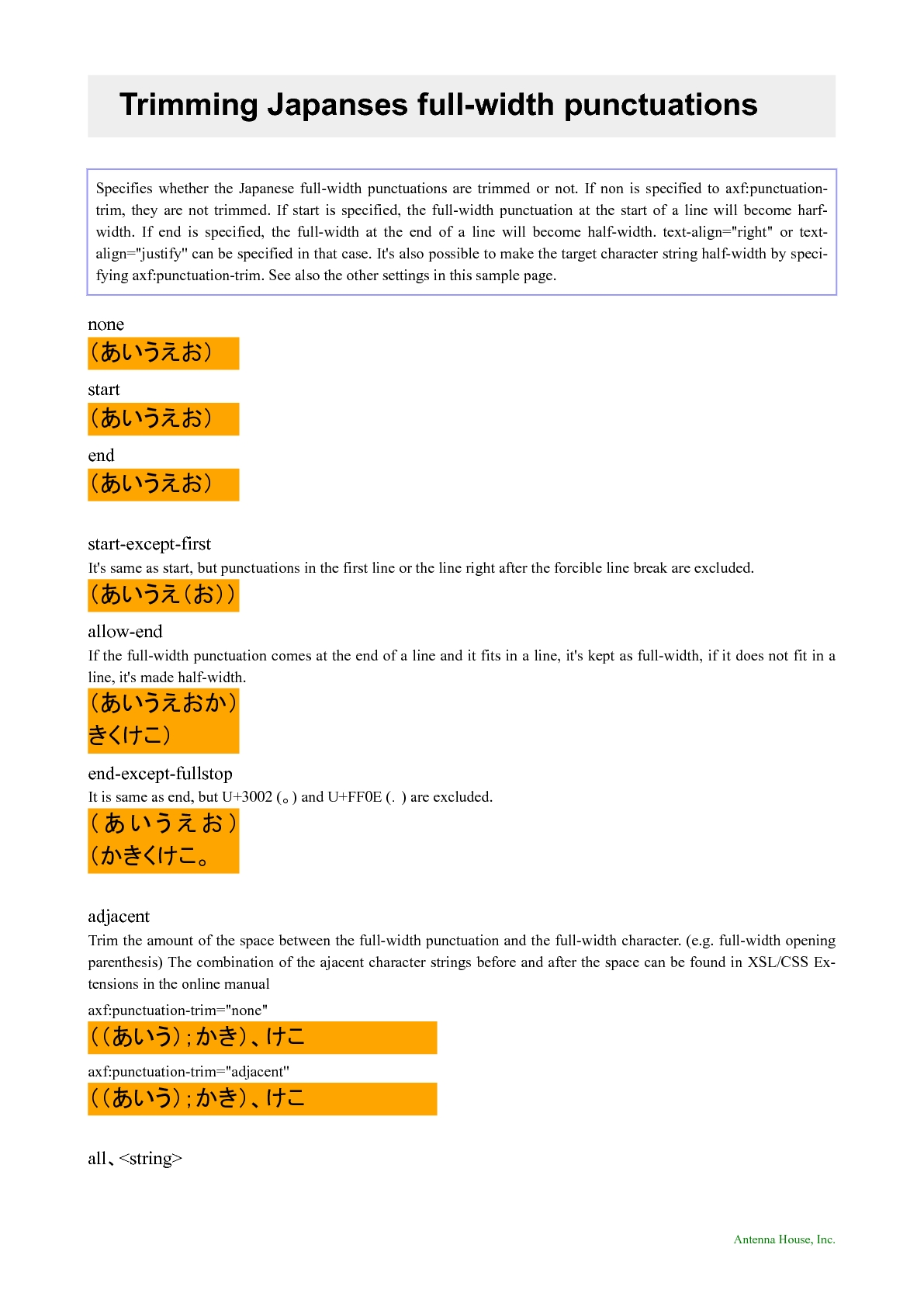

Output:
