axf:line-number-interval

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Line Numbering

The axf:line-number-interval specifies the interval of line numbers. [no-LT]

Value:<number> | auto
Initial:auto
Applies to:fo:page-sequence
Inherited:no
Percentages:N/A

Values have the following meanings.

auto The specification of previous fo:page-sequence is succeeded. When previous fo:page-sequence does not exist, it becomes 1.
<number>Sets the interval of the line numbers to the value specified.

Specifies to show the line numbers like 5, 10, 15. In this case, axf:line-number-initial="1" axf:line-number-start="5" axf:line-number-interval="5" can be applied.

This property is not available with AH Formatter V6.3 Lite.

XSL-FO sample:

<fo:root xml:lang="en" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

Antenna House, Inc.

Line number orientation

It's possible to rotate line numbers by specifying axf:line-number-orientation. This setting makes it possible to display Arabic numerals, Roman numbers in the vertical writing document.

axf:line-number-orientation="90"

電子ファイルの形式としてのPDFを大雑把にいうと紙のページを電子的に表現したものである。

人間が一枚の白紙の紙に鉛筆で文字を書いたり、線を引くときは、頭の中でどの位置に、どんな大きさで、どんな文字や絵を描こうかと考え、考えたとおりに手を動かして、文字と絵を書く。

これと同じようにPDF のファイルの中には、頭の中で考えた状態と同じような情報がプログラムへの「命令」として記述されている。

即ち、PDFファイルには1 枚の紙の左上を原点にして、下方向と右方向に座標軸をとってできる平面を定義し、その平面のどこに、どんな大きさで、なんという文字を書くか、どんな太さで、どんな種類(直線、点線、…)の線を引くか、どんな画像をどこにどんな大きさで配置するか、といった命令が1ページ毎に記録されている。

Download der Beispiele

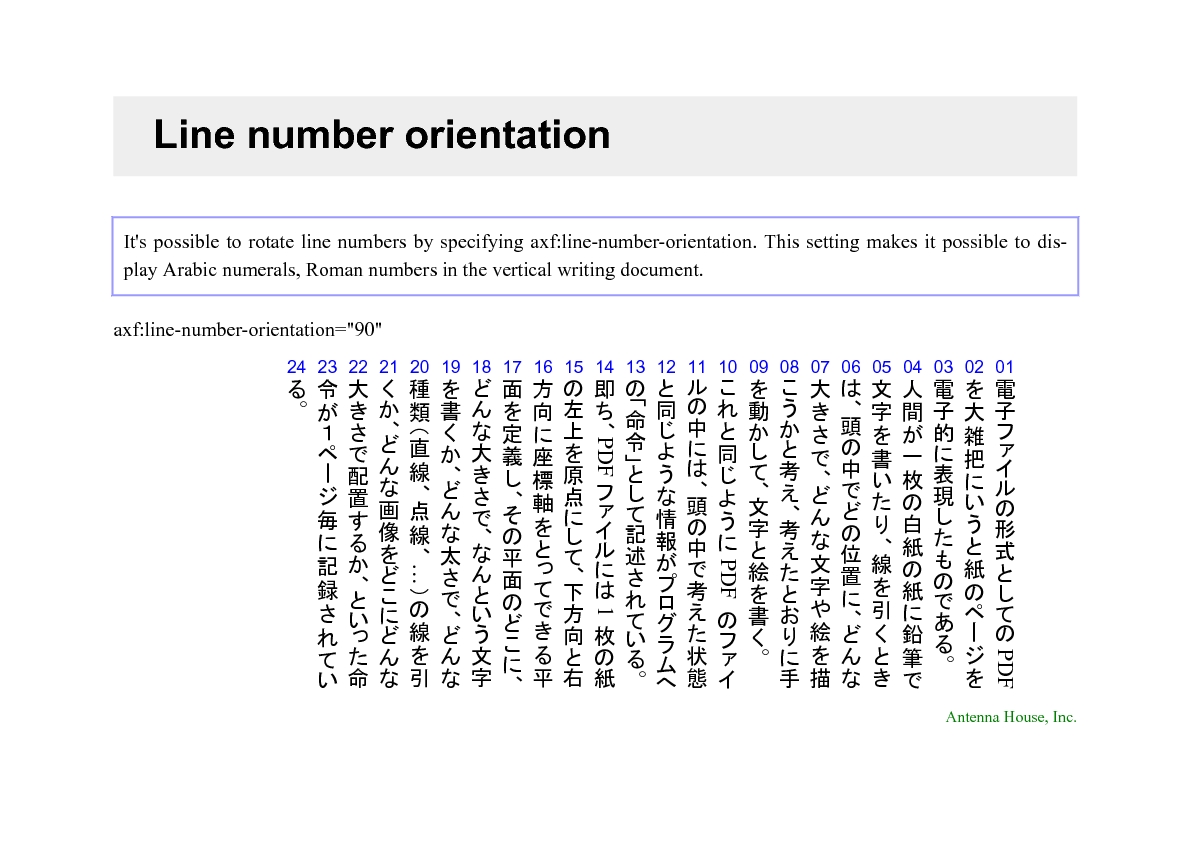

Output:
