axf:field-type

(Auszug aus "XSL-FO ― Die Referenz" von Manuel Montero Pineda & Steffen Herkert, 2016, dpunkt.verlag)

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

Category Acroform in PDF Output

Specifies the field type. [no-LT]

Value:text | button | checkbox | radio | listbox | combobox | signature
Initial:N/A, value is required
Applies to:axf:form-field
Inherited:no
Percentages:N/A

Values have the following meanings.

textSpecifies the text field.
buttonSpecifies the push button field.
checkboxSpecifies the check box field
radioSpecifies the radio button field
listboxSpecifies the list box field
comboboxSpecifies the combo box field
signature

XSL-FO sample:

<fo:root hyphenation-push-character-count="1" hyphenation-remain-character-count="1" font-size="12pt" font-family="Arial" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:cpfo="http://www.compart.net/xmlns/cpfo" xmlns:svg="http://www.w3.org/2000/svg" xmlns:axf="http://www.antennahouse.com/names/XSL/Extensions">

Text Box

Radio Buttons

Option 1

Option 2

Checkbox

Dropdown List

option1

option2

option3

List Box

option1

option2

option3

option4

option5

option6

Password Box

Text Area

Submit Button

Download der Beispiele

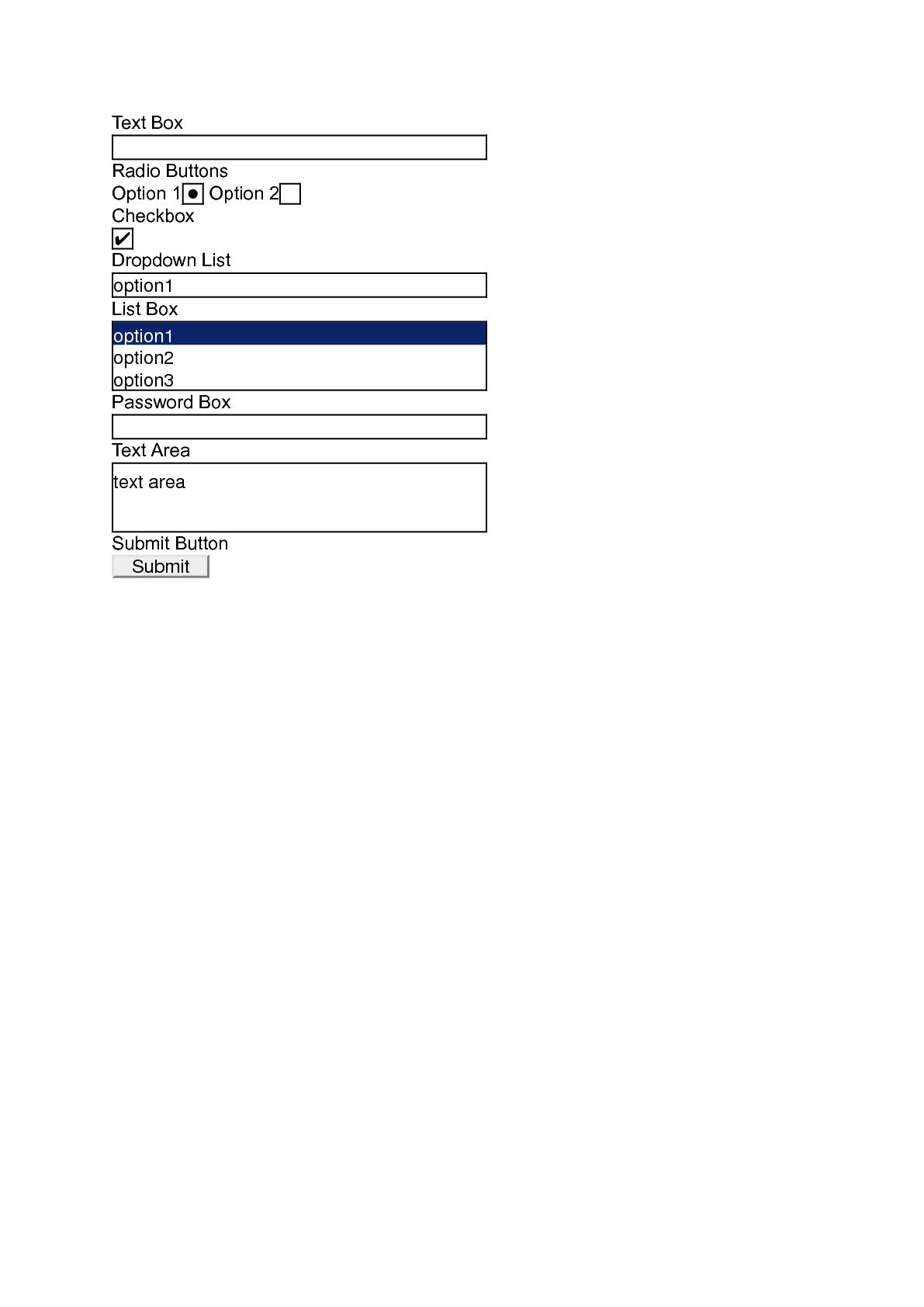

Output:
