Settings

Change settings

Here you can see how to make settings on the parameters of the SAXON processor.

Further links to the SAXON processor:

  • SAXONICA: Documentation
  • Calling up the Settings window

    1. Select the Settings entry in the antillesXML menu.

      → The Settings window appears.

    2. Under Saxon Options you can find selectable, thematically grouped parameters for the transformations with the SAXON processor.

    Display of the Saxon Options under Settings



    The Saxon Options sections under Settings

    Whitespace

    Dealing with whitespace

    Options for the dealing with whitespace
    -sall
    Remove Whitespace

    Choose the Remove Whitespace option next to the parameter name -sall.

    With this setting all whitepace text nodes from the source document are removed prior to further processing.

    This occurs independently of

    • <xsl:strip-space> declarations in the stylesheet
    • or of <xml:space> attributes in the source document.

    -signorable
    Remove ignorable Whitespace

    Choose the Remove ignorable Whitespace option next to the parameter name -signorable.

    With this setting all ignorable whitespace text nodes from the source documents are removed prior to further processing.

    This occurs independently of

    • <xsl:strip-space> declarations in the stylesheet
    • or of <xml:space> attributes in the source document.

    → Whitespace text nodes regularly are to be ignored in elements which are defined in such a way that they only shall have element contents.

    -snone
    Don't remove Whitespace (default)

    Choose the Don't remove Whitespace (default) option next to the parameter name -snone.

    With this setting no whitespace text nodes are removed prior to further processing.

    Whitespace text nodes are only removed if this is defined in the stylesheet by <xsl:strip-space>.

    Structure

    Choosing the tree model

    Calling up the implementation of the internal tree model.

    Selection options of the tree model

    Sourceforge: SAXON → Using Stylesheets → Choosing a tree model

    -ds
    Linkedtree Structure

    Choose the Linkedtree Structure option next to the parameter name -ds.

    With this setting the 'standard tree' model is called up.

    This setting is useful under aspects of performance in case nodes have to be processed by XPath several times.

    -dt
    Tinytree Structure (default)

    Choose the Tinytree Structure (default) option next to the parameter name -dt.

    With this setting the 'tiny tree' model is called up.

    This model should, in particular, be used for large documents whose tree structures could possibly go beyond the scope of the storage.

    Warnings

    Dealing with error messages

    Concerns the procedure for the dealing with recoverable errors in the stylesheet.

    Settings for the error message
    -w0
    Recover Silently

    Choose the Recover Silently option next to the parameter name -w0.

    With this setting errors are fixed without outputting a warning message.

    -w1
    Recover with Warnings (default)

    Choose the Recover with Warnings (default) option next to the parameter name -w1.

    With this setting errors are fixed and an additional warning message is outputted.

    -w2
    Do not recover

    Choose the Do not recover option next to the parameter name -w2.

    With this setting errors are not fixed, only warning messages are outputted.

    Further Options

    Various options

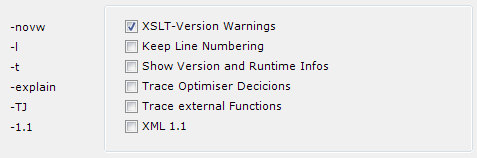

    Overview of the further options within the Settings
    -novw
    XSLT-Version Warnings

    Activate the XSLT-Version Warnings check box next to the parameter name -novw.

    With this setting, warning messages are suppressed being outputted if a XSLT 2.0 processor runs stylesheets which require version 1.0.

    -l
    Keep Line Numbering

    Activate the Keep Line Numbering check box next to the parameter name -l.

    With this setting the line numbering for all source documents is activated.

    -t
    Show Version and Runtime Infos

    Activate the Show Version and Runtime Infos check box next to the parameter name -t.

    Display of version and runtime information for the default error output.

    The output also traces the runtime of files

    • which are read and written
    • and of extension modules which are loaded.

    -explain
    Trace Optimizer Decisions

    Activate the Trace Optimizer Decisions check box next to the parameter name -explain.

    -TJ
    Trace external Functions

    Activate the Trace external Functions check box next to the parameter name -TJ.

    Activates the tracing for the binding of calls to external Java methods.

    Is used for the diagnosis

    • why Saxon cannot locate certain Java methods,
    • whether the XQuery or the XSLT compiler has difficulties to locate self-written extension functions.

    -1.1
    XML 1.1

    Activate the XML 1.1 check box next to the parameter name -1.1.

    This option has to be selected

    • if source documents using XML 1.1 are to be read
    • or if result documents are to be serialised as XML 1.1.
